This class implements a compressed row storage sparsity pattern. More...

#include <SparsityPattern.hpp>

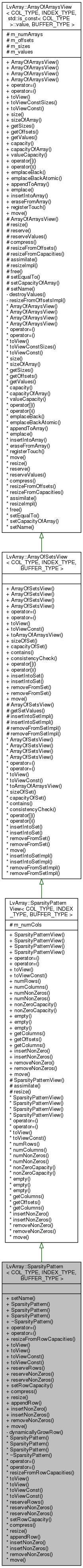

Inheritance diagram for LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >:

Classes
class	CallBacks
	This class provides the callbacks for the sortedArrayManipulation routines. More...

Public Types
using	ColType = COL_TYPE
	The integer type used to enumerate the columns.

using	ColTypeNC = COL_TYPE_NC

Public Member Functions
void	setName (std::string const &name)
	Set the name associated with this SparsityPattern which is used in the chai callback. More...

Constructors and the destructor.
	SparsityPattern (INDEX_TYPE const nrows=0, ColTypeNC const ncols=0, INDEX_TYPE initialRowCapacity=0)
	Constructor. More...

	SparsityPattern (SparsityPattern const &src)
	Copy constructor, performs a deep copy. More...

	SparsityPattern (SparsityPattern &&)=default
	Default move constructor, performs a shallow copy.

	~SparsityPattern ()
	Destructor, frees the values, sizes and offsets Buffers.

Methods to construct the matrix from scratch.
SparsityPattern &	operator= (SparsityPattern const &src)
	Copy assignment operator, performs a deep copy. More...

SparsityPattern &	operator= (SparsityPattern &&src)
	Default move assignment operator, performs a shallow copy. More...

template<typename POLICY >
void	resizeFromRowCapacities (INDEX_TYPE const nRows, ColTypeNC const nCols, INDEX_TYPE const *const rowCapacities)
	Clears the matrix and creates a new matrix with the given number of rows and columns. More...

SparsityPatternView creation methods
constexpr SparsityPatternView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE >	toView () const &

constexpr SparsityPatternView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE >	toView () const &&=delete
	Overload for rvalues that is deleted. More...

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE >	toViewConst () const &

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE >	toViewConst () const &&=delete
	Overload for rvalues that is deleted. More...

Methods to change the capacity
void	reserveRows (INDEX_TYPE const rowCapacity)
	Reserve space for the given number of rows. More...

void	reserveNonZeros (INDEX_TYPE const nnz)
	Reserve space to hold at least the given total number of non zero entries without reallocation. More...

void	reserveNonZeros (INDEX_TYPE const row, INDEX_TYPE const nnz)
	Reserve space to hold at least the given number of non zero entries in the given row without either reallocation or shifting the row offsets. More...

void	setRowCapacity (INDEX_TYPE const row, INDEX_TYPE newCapacity)
	Set the non zero capacity of the given row. More...

void	compress ()
	Compress the SparsityPattern so that the non-zeros of each row are contiguous with no extra capacity in between. More...

Methods to resize the matrix.
void	resize (INDEX_TYPE const nRows, ColTypeNC const nCols, INDEX_TYPE const initialRowCapacity)
	Set the dimensions of the matrix. More...

void	appendRow (INDEX_TYPE const nzCapacity=0)
	Append a row with the given capacity. More...

Methods to modify a row
bool	insertNonZero (INDEX_TYPE const row, COL_TYPE const col)
	Insert a non zero entry in the entry (row, col). More...

template<typename ITER >
INDEX_TYPE	insertNonZeros (INDEX_TYPE const row, ITER const first, ITER const last)
	Inserts multiple non-zero entries into the given row. More...

template<typename ITER >
INDEX_TYPE	removeNonZeros (INDEX_TYPE const row, ITER const first, ITER const last) const
	Remove multiple non-zero entries from the given row. More...

Methods dealing with memory spaces
void	move (MemorySpace const space, bool const touch=true) const
	Move this ArrayOfSets to the given memory space. More...

Private Types
using	ParentClass = SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
	An alias for the parent class.

Private Member Functions
void	dynamicallyGrowRow (INDEX_TYPE const row, INDEX_TYPE const newNNZ)
	Increase the capacity of a row to accommodate at least the given number of non zero entries. More...

Additional Inherited Members
Protected Types inherited from LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
using	COL_TYPE_NC = std::remove_const_t< COL_TYPE >

using	ParentClass = ArrayOfSetsView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
	An alias for the parent class.

using	INDEX_TYPE_NC = typename ParentClass::INDEX_TYPE_NC
	Since INDEX_TYPE should always be const we need an alias for the non const version.

using	SIZE_TYPE = std::conditional_t< CONST_SIZES, INDEX_TYPE const, INDEX_TYPE_NC >
	The type contained by the m_sizes buffer.

using	ColType = COL_TYPE
	The integer type used to enumerate the columns.

using	ColTypeNC = COL_TYPE_NC

using	IndexType = INDEX_TYPE
	The integer type used for indexing.

Protected Types inherited from LvArray::ArrayOfSetsView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
using	ParentClass = ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
	Alias for the parent class.

using	INDEX_TYPE_NC = typename ParentClass::INDEX_TYPE_NC
	Since INDEX_TYPE should always be const we need an alias for the non const version.

using	SIZE_TYPE = std::conditional_t< CONST_SIZES, INDEX_TYPE const, INDEX_TYPE_NC >
	The type contained by the m_sizes buffer.

using	ValueType = COL_TYPE
	An alias for the type contained in the inner arrays.

using	IndexType = INDEX_TYPE
	The integer type used for indexing.

using	value_type = COL_TYPE
	An alias for the type contained in the inner arrays, here for stl compatability.

using	size_type = INDEX_TYPE
	The integer type used for indexing, here for stl compatability.

Protected Types inherited from LvArray::ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
using	INDEX_TYPE_NC = std::remove_const_t< INDEX_TYPE >
	Since INDEX_TYPE should always be const we need an alias for the non const version.

using	SIZE_TYPE = std::conditional_t< CONST_SIZES, INDEX_TYPE const, INDEX_TYPE_NC >
	The type contained by the m_sizes buffer.

using	PairOfBuffers = std::pair< BUFFER_TYPE< U > &, BUFFER_TYPE< U > const & >
	Alias for a std::pair of buffers. More...

using	ValueType = COL_TYPE
	An alias for the type contained in the inner arrays.

using	IndexType = INDEX_TYPE
	The integer type used for indexing.

using	value_type = COL_TYPE
	An alias for the type contained in the inner arrays, here for stl compatability.

using	size_type = INDEX_TYPE
	The integer type used for indexing, here for stl compatability.

Protected Member Functions inherited from LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
	SparsityPatternView (bool)
	Protected constructor to be used by parent classes. More...

void	assimilate (SparsityPatternView &&src)
	Steal the resources of `src`, clearing it in the process. More...

template<class ... BUFFERS>
void	resize (INDEX_TYPE const nrows, COL_TYPE const ncols, INDEX_TYPE_NC initialRowCapacity, BUFFERS &... buffers)
	Resize the SparsityPattern to the given size. More...

	SparsityPatternView ()=default
	A constructor to create an uninitialized SparsityPatternView. More...

	SparsityPatternView (SparsityPatternView const &)=default
	Default copy constructor. More...

	SparsityPatternView (SparsityPatternView &&src)
	Move constructor. More...

LVARRAY_HOST_DEVICE constexpr	SparsityPatternView (INDEX_TYPE const nRows, COL_TYPE const nCols, BUFFER_TYPE< INDEX_TYPE > const &offsets, BUFFER_TYPE< SIZE_TYPE > const &nnz, BUFFER_TYPE< COL_TYPE > const &columns)
	Construct a new CRSMatrixView from the given buffers. More...

SparsityPatternView &	operator= (SparsityPatternView const &)=default
	Default copy assignment operator, this does a shallow copy. More...

SparsityPatternView &	operator= (SparsityPatternView &&src)
	Move assignment operator, this does a shallow copy. More...

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE >	toView () const

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE >	toViewConst () const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	numRows () const

LVARRAY_HOST_DEVICE constexpr COL_TYPE const	numColumns () const

LVARRAY_HOST_DEVICE INDEX_TYPE_NC	numNonZeros () const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	numNonZeros (INDEX_TYPE const row) const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	nonZeroCapacity () const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	nonZeroCapacity (INDEX_TYPE const row) const

LVARRAY_HOST_DEVICE bool	empty () const

LVARRAY_HOST_DEVICE constexpr bool	empty (INDEX_TYPE const row) const

LVARRAY_HOST_DEVICE bool	empty (INDEX_TYPE const row, COL_TYPE const col) const

LVARRAY_HOST_DEVICE constexpr ArraySlice< COL_TYPE const, 1, 0, INDEX_TYPE_NC >	getColumns (INDEX_TYPE const row) const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE const *	getOffsets () const

LVARRAY_HOST_DEVICE constexpr COL_TYPE const *	getColumns () const

LVARRAY_HOST_DEVICE bool	insertNonZero (INDEX_TYPE const row, COL_TYPE const col) const
	Insert a non-zero entry at the given position. More...

template<typename ITER >
LVARRAY_HOST_DEVICE INDEX_TYPE_NC	insertNonZeros (INDEX_TYPE const row, ITER const first, ITER const last) const
	Inserts multiple non-zero entries into the given row. More...

LVARRAY_HOST_DEVICE bool	removeNonZero (INDEX_TYPE const row, COL_TYPE const col) const
	Remove a non-zero entry at the given position. More...

template<typename ITER >
DISABLE_HD_WARNING LVARRAY_HOST_DEVICE INDEX_TYPE_NC	removeNonZeros (INDEX_TYPE const row, ITER const first, ITER const last) const
	Remove multiple non-zero entries from the given row. More...

void	move (MemorySpace const space, bool const touch=true) const
	Move this ArrayOfSets to the given memory space. More...

Protected Member Functions inherited from LvArray::ArrayOfSetsView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
	ArrayOfSetsView (bool)
	Protected constructor to be used by parent classes. More...

LVARRAY_HOST_DEVICE constexpr ArraySlice< COL_TYPE, 1, 0, INDEX_TYPE_NC >	getSetValues (INDEX_TYPE const i) const

LVARRAY_HOST_DEVICE bool	insertIntoSetImpl (INDEX_TYPE const i, COL_TYPE const &value, CALLBACKS &&cbacks) const
	Helper function to insert a value into the given set. More...

LVARRAY_HOST_DEVICE INDEX_TYPE_NC	insertIntoSetImpl (INDEX_TYPE const i, ITER const first, ITER const last, CALLBACKS &&cbacks) const
	Inserts multiple values into the given set. More...

LVARRAY_HOST_DEVICE bool	removeFromSetImpl (INDEX_TYPE const i, COL_TYPE const &value, CALLBACKS &&cbacks) const
	Helper function to remove a value from the given set. More...

LVARRAY_HOST_DEVICE INDEX_TYPE_NC	removeFromSetImpl (INDEX_TYPE const i, ITER const first, ITER const last, CALLBACKS &&cbacks) const
	Removes multiple values from the given set. More...

	ArrayOfSetsView ()=default
	A constructor to create an uninitialized ArrayOfSetsView. More...

	ArrayOfSetsView (ArrayOfSetsView const &)=default
	Default copy constructor. Performs a shallow copy and calls the chai::ManagedArray copy constructor.

	ArrayOfSetsView (ArrayOfSetsView &&)=default
	Default move constructor.

LVARRAY_HOST_DEVICE constexpr	ArrayOfSetsView (INDEX_TYPE const numArrays, BUFFER_TYPE< INDEX_TYPE > const &offsets, BUFFER_TYPE< SIZE_TYPE > const &sizes, BUFFER_TYPE< COL_TYPE > const &values)
	Construct a new ArrayOfArraysView from the given buffers. More...

ArrayOfSetsView &	operator= (ArrayOfSetsView const &)=default
	Default copy assignment operator, this does a shallow copy. More...

ArrayOfSetsView &	operator= (ArrayOfSetsView &&)=default
	Default move assignment operator, this does a shallow copy. More...

LVARRAY_HOST_DEVICE constexpr ArrayOfSetsView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE >	toView () const

LVARRAY_HOST_DEVICE constexpr ArrayOfSetsView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE >	toViewConst () const

LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE const, INDEX_TYPE const, true, BUFFER_TYPE >	toArrayOfArraysView () const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	sizeOfSet (INDEX_TYPE const i) const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	capacityOfSet (INDEX_TYPE const i) const

LVARRAY_HOST_DEVICE bool	contains (INDEX_TYPE const i, COL_TYPE const &value) const

void	consistencyCheck () const
	Verify that the capacity of each set is greater than or equal to the size and that each set is sorted unique. More...

LVARRAY_HOST_DEVICE constexpr ArraySlice< COL_TYPE const, 1, 0, INDEX_TYPE_NC >	operator[] (INDEX_TYPE const i) const

LVARRAY_HOST_DEVICE constexpr COL_TYPE const &	operator() (INDEX_TYPE const i, INDEX_TYPE const j) const

LVARRAY_HOST_DEVICE bool	insertIntoSet (INDEX_TYPE const i, COL_TYPE const &value) const
	Insert a value into the given set. More...

LVARRAY_HOST_DEVICE INDEX_TYPE_NC	insertIntoSet (INDEX_TYPE const i, ITER const first, ITER const last) const
	Inserts multiple values into the given set. More...

LVARRAY_HOST_DEVICE bool	removeFromSet (INDEX_TYPE const i, COL_TYPE const &value) const
	Remove a value from the given set. More...

LVARRAY_HOST_DEVICE INDEX_TYPE_NC	removeFromSet (INDEX_TYPE const i, ITER const first, ITER const last) const
	Removes multiple values from the given set. More...

void	move (MemorySpace const space, bool const touch=true) const
	Move this ArrayOfSets to the given memory space. More...

Protected Member Functions inherited from LvArray::ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
	ArrayOfArraysView (bool)
	Protected constructor to be used by parent classes. More...

void	resize (INDEX_TYPE const newSize, INDEX_TYPE const defaultArrayCapacity=0)
	Set the number of arrays. More...

void	reserve (INDEX_TYPE const newCapacity)
	Reserve space for the given number of arrays. More...

void	reserveValues (INDEX_TYPE const newValueCapacity, BUFFERS &... buffers)
	Reserve space for the given number of values. More...

void	compress (BUFFERS &... buffers)
	Compress the arrays so that the values of each array are contiguous with no extra capacity in between. More...

void	resizeFromOffsets (INDEX_TYPE const numSubArrays, INDEX_TYPE const *const offsets, BUFFERS &... buffers)
	Clears the array and creates a new array with the given number of sub-arrays. More...

void	resizeFromCapacities (INDEX_TYPE const numSubArrays, INDEX_TYPE const *const capacities, BUFFERS &... buffers)
	Clears the array and creates a new array with the given number of sub-arrays. More...

void	assimilate (ArrayOfArraysView< COL_TYPE, INDEX_TYPE, CONST_SIZES, BUFFER_TYPE > &&src)
	Steal the resources of `src`, clearing it in the process. More...

void	resizeImpl (INDEX_TYPE const newSize, INDEX_TYPE const defaultArrayCapacity, BUFFERS &... buffers)
	Set the number of arrays. More...

void	free (BUFFERS &... buffers)
	Destroy all the objects held by this array and free all associated memory. More...

void	setEqualTo (INDEX_TYPE const srcNumArrays, INDEX_TYPE const srcMaxOffset, BUFFER_TYPE< INDEX_TYPE > const &srcOffsets, BUFFER_TYPE< INDEX_TYPE > const &srcSizes, BUFFER_TYPE< COL_TYPE > const &srcValues, PAIRS_OF_BUFFERS &&... pairs)
	Set this ArrayOfArraysView equal to the provided arrays. More...

void	setCapacityOfArray (INDEX_TYPE const i, INDEX_TYPE const newCapacity, BUFFERS &... buffers)
	Set the capacity of the given array. More...

void	setName (std::string const &name)
	Set the name to be displayed whenever the underlying Buffer's user call back is called. More...

	ArrayOfArraysView ()=default
	A constructor to create an uninitialized ArrayOfArraysView. More...

	ArrayOfArraysView (ArrayOfArraysView const &)=default
	Default copy constructor. More...

LVARRAY_HOST_DEVICE constexpr	ArrayOfArraysView (ArrayOfArraysView &&src)
	Default move constructor. More...

LVARRAY_HOST_DEVICE constexpr	ArrayOfArraysView (INDEX_TYPE const numArrays, BUFFER_TYPE< INDEX_TYPE > const &offsets, BUFFER_TYPE< SIZE_TYPE > const &sizes, BUFFER_TYPE< COL_TYPE > const &values)
	Construct a new ArrayOfArraysView from the given buffers. More...

ArrayOfArraysView &	operator= (ArrayOfArraysView const &)=default
	Default copy assignment operator. More...

LVARRAY_HOST_DEVICE ArrayOfArraysView &	operator= (ArrayOfArraysView &&src)
	Move assignment operator.. More...

LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE, INDEX_TYPE const, CONST_SIZES, BUFFER_TYPE >	toView () const

LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE, INDEX_TYPE const, true, BUFFER_TYPE >	toViewConstSizes () const

LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE const, INDEX_TYPE const, true, BUFFER_TYPE >	toViewConst () const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	size () const

LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK INDEX_TYPE_NC	sizeOfArray (INDEX_TYPE const i) const

LVARRAY_HOST_DEVICE constexpr SIZE_TYPE const *	getSizes () const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE const *	getOffsets () const

LVARRAY_HOST_DEVICE constexpr COL_TYPE const *	getValues () const

LVARRAY_HOST_DEVICE CONSTEXPR_WITH_NDEBUG INDEX_TYPE_NC	capacity () const

LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK INDEX_TYPE_NC	capacityOfArray (INDEX_TYPE const i) const

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	valueCapacity () const

LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK ArraySlice< COL_TYPE, 1, 0, INDEX_TYPE_NC >	operator[] (INDEX_TYPE const i) const

LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK COL_TYPE &	operator() (INDEX_TYPE const i, INDEX_TYPE const j) const

LVARRAY_HOST_DEVICE void	emplaceBack (INDEX_TYPE const i, ARGS &&... args) const
	Append a value to an array. More...

LVARRAY_HOST_DEVICE void	emplaceBackAtomic (INDEX_TYPE const i, ARGS &&... args) const
	Append a value to an array in a thread safe manner. More...

LVARRAY_HOST_DEVICE void	appendToArray (INDEX_TYPE const i, ITER const first, ITER const last) const
	Append values to an array. More...

LVARRAY_HOST_DEVICE void	emplace (INDEX_TYPE const i, INDEX_TYPE const j, ARGS &&... args) const
	Insert a value into an array. More...

LVARRAY_HOST_DEVICE void	insertIntoArray (INDEX_TYPE const i, INDEX_TYPE const j, ITER const first, ITER const last) const
	Insert values into an array. More...

LVARRAY_HOST_DEVICE void	eraseFromArray (INDEX_TYPE const i, INDEX_TYPE const j, INDEX_TYPE const n=1) const
	Erase values from an array. More...

void	registerTouch (MemorySpace const space) const
	Touch the memory in `space`. More...

void	move (MemorySpace const space, bool touch=true) const
	Move this ArrayOfArrays to the given memory space. More...

Protected Attributes inherited from LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
COL_TYPE_NC	m_numCols
	The number of columns in the matrix.

Protected Attributes inherited from LvArray::ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
INDEX_TYPE_NC	m_numArrays
	The number of arrays contained.

BUFFER_TYPE< INDEX_TYPE >	m_offsets

BUFFER_TYPE< SIZE_TYPE >	m_sizes
	Holds the size of each array.

BUFFER_TYPE< COL_TYPE >	m_values

Detailed Description

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>
class LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >

This class implements a compressed row storage sparsity pattern.

Template Parameters

COL_TYPE	the integer used to enumerate the columns.
INDEX_TYPE	the integer to use for indexing.

Constructor & Destructor Documentation

◆ SparsityPattern() [1/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::SparsityPattern	(	INDEX_TYPE const	nrows = `0`,
		ColTypeNC const	ncols = `0`,
		INDEX_TYPE	initialRowCapacity = `0`
	)

inline

Constructor.

Parameters

nrows	the number of rows in the matrix.
ncols	the number of columns in the matrix.
initialRowCapacity	the initial non zero capacity of each row.

◆ SparsityPattern() [2/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::SparsityPattern ( SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > const & src )

inline

Copy constructor, performs a deep copy.

Parameters

src	the SparsityPattern to copy.

Member Function Documentation

◆ appendRow()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::appendRow ( INDEX_TYPE const nzCapacity = 0 )

inline

Append a row with the given capacity.

Parameters

nzCapacity The non zero capacity of the row.

◆ compress()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::compress ( )

inline

Compress the SparsityPattern so that the non-zeros of each row are contiguous with no extra capacity in between.

Note: This method doesn't free any memory.

◆ dynamicallyGrowRow()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::dynamicallyGrowRow	(	INDEX_TYPE const	row,
		INDEX_TYPE const	newNNZ
	)

inlineprivate

Increase the capacity of a row to accommodate at least the given number of non zero entries.

Parameters

row	the row to increase the capacity of.
newNNZ	the new number of non zero entries.

Note: This method over-allocates so that subsequent calls to insert don't have to reallocate.

◆ insertNonZero()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

bool LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::insertNonZero	(	INDEX_TYPE const	row,
		COL_TYPE const	col
	)

inline

Insert a non zero entry in the entry (row, col).

Parameters

row	the row of the entry to insert.
col	the column of the entry to insert.

Returns: True iff the entry was previously empty.

◆ insertNonZeros()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

template<typename ITER >

INDEX_TYPE LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::insertNonZeros	(	INDEX_TYPE const	row,
		ITER const	first,
		ITER const	last
	)

inline

Inserts multiple non-zero entries into the given row.

Template Parameters

ITER	An iterator type.

Parameters

row	The row to insert into.
first	An iterator to the first column to insert.
last	An iterator to the end of the columns to insert.

Returns: The number of columns inserted.

Note: The columns to insert [ first, last ) must be sorted and contain no duplicates.

◆ move()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::move	(	MemorySpace const	space,
		bool const	touch = `true`
	)		const

inline

Move this ArrayOfSets to the given memory space.

Parameters

space	The memory space to move to.
touch	If true touch the values, sizes and offsets in the new space.

Note: When moving to the GPU since the offsets can't be modified on device they are not touched.; This is just a wrapper around the ArrayOfArraysView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.; This is just a wrapper around the ArrayOfSetsView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.; This is just a wrapper around the ArrayOfSetsView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.; This is just a wrapper around the SparsityPatternView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.

◆ operator=() [1/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

SparsityPattern& LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::operator= ( SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > const & src )

inline

Copy assignment operator, performs a deep copy.

Parameters

src	the SparsityPattern to copy.

Returns: *this.

◆ operator=() [2/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

SparsityPattern& LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::operator= ( SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > && src )

inline

Default move assignment operator, performs a shallow copy.

Parameters

src	The SparsityPattern to be moved from.

Returns: *this.

◆ removeNonZeros()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

template<typename ITER >

INDEX_TYPE LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::removeNonZeros	(	INDEX_TYPE const	row,
		ITER const	first,
		ITER const	last
	)		const

inline

Remove multiple non-zero entries from the given row.

Template Parameters

ITER	An iterator type.

Parameters

row	The row to remove from.
first	An iterator to the first column to remove.
last	An iterator to the end of the columns to remove.

Returns: The number of columns removed.

Precondition: The columns to remove [ first, last ) must be sorted and contain no duplicates.

Note: This is not brought in with a using statement because it breaks doxygen.

◆ reserveNonZeros() [1/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::reserveNonZeros ( INDEX_TYPE const nnz )

inline

Reserve space to hold at least the given total number of non zero entries without reallocation.

Parameters

nnz	the number of no zero entries to reserve space for.

◆ reserveNonZeros() [2/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::reserveNonZeros	(	INDEX_TYPE const	row,
		INDEX_TYPE const	nnz
	)

inline

Reserve space to hold at least the given number of non zero entries in the given row without either reallocation or shifting the row offsets.

Parameters

row	the row to reserve space in.
nnz	the number of no zero entries to reserve space for.

◆ reserveRows()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::reserveRows ( INDEX_TYPE const rowCapacity )

inline

Reserve space for the given number of rows.

Parameters

rowCapacity The new minimum capacity for the number of rows.

◆ resize()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::resize	(	INDEX_TYPE const	nRows,
		ColTypeNC const	nCols,
		INDEX_TYPE const	initialRowCapacity
	)

inline

Set the dimensions of the matrix.

Parameters

nRows	the new number of rows.
nCols	the new number of columns.
initialRowCapacity	the default capacity for each new array.

Note: When shrinking the number of columns this method doesn't get rid of any existing entries. This can leave the matrix in an invalid state where a row has more columns than the matrix or where a specific column is greater than the number of columns in the matrix. If you will be constructing the matrix from scratch it is reccomended to clear it first.

◆ resizeFromRowCapacities()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

template<typename POLICY >

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::resizeFromRowCapacities	(	INDEX_TYPE const	nRows,
		ColTypeNC const	nCols,
		INDEX_TYPE const *const	rowCapacities
	)

inline

Clears the matrix and creates a new matrix with the given number of rows and columns.

Template Parameters

POLICY The RAJA policy used to convert rowCapacities into the offsets array. Should NOT be a device policy.

Parameters

nRows	The new number of rows.
nCols	The new number of columns.
rowCapacities	A pointer to an array of length `nRows` containing the capacity of each new row.

◆ setName()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::setName ( std::string const & name )

inline

Set the name associated with this SparsityPattern which is used in the chai callback.

Parameters

name	the of the SparsityPattern.

◆ setRowCapacity()

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

void LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::setRowCapacity	(	INDEX_TYPE const	row,
		INDEX_TYPE	newCapacity
	)

inline

Set the non zero capacity of the given row.

Parameters

row	the row to modify.
newCapacity	the new capacity of the row.

Note: If the given capacity is less than the current number of non zero entries the entries are truncated.; Since a row can hold at most numColumns() entries the resulting capacity is min(newCapacity, numColumns()).

◆ toView() [1/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

constexpr SparsityPatternView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE > LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::toView ( ) const &

inline

Returns: A new SparsityPatternView< COL_TYPE, INDEX_TYPE const >.

Note: This is just a wrapper around the SparsityPatternView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.

◆ toView() [2/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

constexpr SparsityPatternView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE > LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::toView ( ) const &&

inlinedelete

Overload for rvalues that is deleted.

Returns: A null SparsityPatternView.

Note: This cannot be called on a rvalue since the SparsityPatternView would contain the buffers of the current SparsityPattern that is about to be destroyed. This overload prevents that from happening.

◆ toViewConst() [1/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE > LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::toViewConst ( ) const &

inline

Returns: A new SparsityPatternView< COL_TYPE const, INDEX_TYPE const >.

Note: This is just a wrapper around the SparsityPatternView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.

◆ toViewConst() [2/2]

template<typename COL_TYPE , typename INDEX_TYPE , template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE > LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::toViewConst ( ) const &&

inlinedelete

Overload for rvalues that is deleted.

Returns: A null SparsityPatternView.

Note: This cannot be called on a rvalue since the SparsityPatternView would contain the buffers of the current SparsityPattern that is about to be destroyed. This overload prevents that from happening.

The documentation for this class was generated from the following files:

/home/docs/checkouts/readthedocs.org/user_builds/lvarray/checkouts/latest/src/CRSMatrix.hpp
/home/docs/checkouts/readthedocs.org/user_builds/lvarray/checkouts/latest/src/SparsityPattern.hpp

Classes

Public Types

Public Member Functions

Private Types

Private Member Functions

Additional Inherited Members

Detailed Description

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE> class LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >

Constructor & Destructor Documentation

◆ SparsityPattern() [1/2]

◆ SparsityPattern() [2/2]

Member Function Documentation

◆ appendRow()

◆ compress()

◆ dynamicallyGrowRow()

◆ insertNonZero()

◆ insertNonZeros()

◆ move()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ removeNonZeros()

◆ reserveNonZeros() [1/2]

◆ reserveNonZeros() [2/2]

◆ reserveRows()

◆ resize()

◆ resizeFromRowCapacities()

◆ setName()

◆ setRowCapacity()

◆ toView() [1/2]

◆ toView() [2/2]

◆ toViewConst() [1/2]

◆ toViewConst() [2/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>
class LvArray::SparsityPattern< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
