LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > Class Template Reference

This class provides a view into a compressed row storage sparsity pattern. More...

#include <SparsityPatternView.hpp>

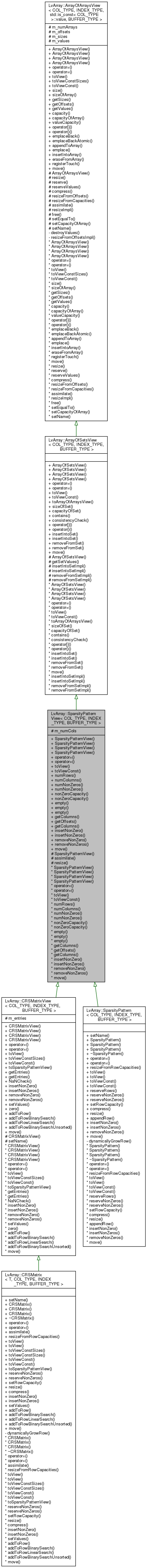

Inheritance diagram for LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >:

Public Types
using	ColType = COL_TYPE
	The integer type used to enumerate the columns.
using	ColTypeNC = COL_TYPE_NC
using	IndexType = INDEX_TYPE
	The integer type used for indexing.

Public Member Functions
Constructors, destructor and assignment operators
	SparsityPatternView ()=default
	A constructor to create an uninitialized SparsityPatternView. More...
	SparsityPatternView (SparsityPatternView const &)=default
	Default copy constructor. More...
	SparsityPatternView (SparsityPatternView &&src)
	Move constructor. More...
LVARRAY_HOST_DEVICE constexpr	SparsityPatternView (INDEX_TYPE const nRows, COL_TYPE const nCols, BUFFER_TYPE< INDEX_TYPE > const &offsets, BUFFER_TYPE< SIZE_TYPE > const &nnz, BUFFER_TYPE< COL_TYPE > const &columns)
	Construct a new CRSMatrixView from the given buffers. More...
SparsityPatternView &	operator= (SparsityPatternView const &)=default
	Default copy assignment operator, this does a shallow copy. More...
SparsityPatternView &	operator= (SparsityPatternView &&src)
	Move assignment operator, this does a shallow copy. More...
SparsityPatternView creation methods
LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE >	toView () const
LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE >	toViewConst () const
Attribute querying methods
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	numRows () const
LVARRAY_HOST_DEVICE constexpr COL_TYPE const	numColumns () const
LVARRAY_HOST_DEVICE INDEX_TYPE_NC	numNonZeros () const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	numNonZeros (INDEX_TYPE const row) const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	nonZeroCapacity () const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const	nonZeroCapacity (INDEX_TYPE const row) const
LVARRAY_HOST_DEVICE bool	empty () const
LVARRAY_HOST_DEVICE constexpr bool	empty (INDEX_TYPE const row) const
LVARRAY_HOST_DEVICE bool	empty (INDEX_TYPE const row, COL_TYPE const col) const
Methods that provide access to the data
LVARRAY_HOST_DEVICE constexpr ArraySlice< COL_TYPE const, 1, 0, INDEX_TYPE_NC >	getColumns (INDEX_TYPE const row) const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE const *	getOffsets () const
LVARRAY_HOST_DEVICE constexpr COL_TYPE const *	getColumns () const
Methods that insert or remove entries from a row.
LVARRAY_HOST_DEVICE bool	insertNonZero (INDEX_TYPE const row, COL_TYPE const col) const
	Insert a non-zero entry at the given position. More...
template<typename ITER >
LVARRAY_HOST_DEVICE INDEX_TYPE_NC	insertNonZeros (INDEX_TYPE const row, ITER const first, ITER const last) const
	Inserts multiple non-zero entries into the given row. More...
LVARRAY_HOST_DEVICE bool	removeNonZero (INDEX_TYPE const row, COL_TYPE const col) const
	Remove a non-zero entry at the given position. More...
template<typename ITER >
DISABLE_HD_WARNING LVARRAY_HOST_DEVICE INDEX_TYPE_NC	removeNonZeros (INDEX_TYPE const row, ITER const first, ITER const last) const
	Remove multiple non-zero entries from the given row. More...
Methods dealing with memory spaces
void	move (MemorySpace const space, bool const touch=true) const
	Move this ArrayOfSets to the given memory space. More...

Protected Types
using	COL_TYPE_NC = std::remove_const_t< COL_TYPE >
using	ParentClass = ArrayOfSetsView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
	An alias for the parent class.
using	INDEX_TYPE_NC = typename ParentClass::INDEX_TYPE_NC
	Since INDEX_TYPE should always be const we need an alias for the non const version.
using	SIZE_TYPE = std::conditional_t< CONST_SIZES, INDEX_TYPE const, INDEX_TYPE_NC >
	The type contained by the m_sizes buffer.
Protected Types inherited from LvArray::ArrayOfSetsView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
using	ParentClass = ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
	Alias for the parent class.
using	INDEX_TYPE_NC = typename ParentClass::INDEX_TYPE_NC
	Since INDEX_TYPE should always be const we need an alias for the non const version.
using	SIZE_TYPE = std::conditional_t< CONST_SIZES, INDEX_TYPE const, INDEX_TYPE_NC >
	The type contained by the m_sizes buffer.
using	ValueType = COL_TYPE
	An alias for the type contained in the inner arrays.
using	IndexType = INDEX_TYPE
	The integer type used for indexing.
using	value_type = COL_TYPE
	An alias for the type contained in the inner arrays, here for stl compatability.
using	size_type = INDEX_TYPE
	The integer type used for indexing, here for stl compatability.
Protected Types inherited from LvArray::ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
using	INDEX_TYPE_NC = std::remove_const_t< INDEX_TYPE >
	Since INDEX_TYPE should always be const we need an alias for the non const version.
using	SIZE_TYPE = std::conditional_t< CONST_SIZES, INDEX_TYPE const, INDEX_TYPE_NC >
	The type contained by the m_sizes buffer.
using	PairOfBuffers = std::pair< BUFFER_TYPE< U > &, BUFFER_TYPE< U > const & >
	Alias for a std::pair of buffers. More...
using	ValueType = COL_TYPE
	An alias for the type contained in the inner arrays.
using	IndexType = INDEX_TYPE
	The integer type used for indexing.
using	value_type = COL_TYPE
	An alias for the type contained in the inner arrays, here for stl compatability.
using	size_type = INDEX_TYPE
	The integer type used for indexing, here for stl compatability.

Protected Member Functions
	SparsityPatternView (bool)
	Protected constructor to be used by parent classes. More...
void	assimilate (SparsityPatternView &&src)
	Steal the resources of src, clearing it in the process. More...
template<class ... BUFFERS>
void	resize (INDEX_TYPE const nrows, COL_TYPE const ncols, INDEX_TYPE_NC initialRowCapacity, BUFFERS &... buffers)
	Resize the SparsityPattern to the given size. More...
Protected Member Functions inherited from LvArray::ArrayOfSetsView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >
	ArrayOfSetsView (bool)
	Protected constructor to be used by parent classes. More...
LVARRAY_HOST_DEVICE constexpr ArraySlice< COL_TYPE, 1, 0, INDEX_TYPE_NC >	getSetValues (INDEX_TYPE const i) const
LVARRAY_HOST_DEVICE bool	insertIntoSetImpl (INDEX_TYPE const i, COL_TYPE const &value, CALLBACKS &&cbacks) const
	Helper function to insert a value into the given set. More...
LVARRAY_HOST_DEVICE INDEX_TYPE_NC	insertIntoSetImpl (INDEX_TYPE const i, ITER const first, ITER const last, CALLBACKS &&cbacks) const
	Inserts multiple values into the given set. More...
LVARRAY_HOST_DEVICE bool	removeFromSetImpl (INDEX_TYPE const i, COL_TYPE const &value, CALLBACKS &&cbacks) const
	Helper function to remove a value from the given set. More...
LVARRAY_HOST_DEVICE INDEX_TYPE_NC	removeFromSetImpl (INDEX_TYPE const i, ITER const first, ITER const last, CALLBACKS &&cbacks) const
	Removes multiple values from the given set. More...
	ArrayOfSetsView ()=default
	A constructor to create an uninitialized ArrayOfSetsView. More...
	ArrayOfSetsView (ArrayOfSetsView const &)=default
	Default copy constructor. Performs a shallow copy and calls the chai::ManagedArray copy constructor.
	ArrayOfSetsView (ArrayOfSetsView &&)=default
	Default move constructor.
LVARRAY_HOST_DEVICE constexpr	ArrayOfSetsView (INDEX_TYPE const numArrays, BUFFER_TYPE< INDEX_TYPE > const &offsets, BUFFER_TYPE< SIZE_TYPE > const &sizes, BUFFER_TYPE< COL_TYPE > const &values)
	Construct a new ArrayOfArraysView from the given buffers. More...
ArrayOfSetsView &	operator= (ArrayOfSetsView const &)=default
	Default copy assignment operator, this does a shallow copy. More...
ArrayOfSetsView &	operator= (ArrayOfSetsView &&)=default
	Default move assignment operator, this does a shallow copy. More...
LVARRAY_HOST_DEVICE constexpr ArrayOfSetsView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE >	toView () const
LVARRAY_HOST_DEVICE constexpr ArrayOfSetsView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE >	toViewConst () const
LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE const, INDEX_TYPE const, true, BUFFER_TYPE >	toArrayOfArraysView () const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	sizeOfSet (INDEX_TYPE const i) const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	capacityOfSet (INDEX_TYPE const i) const
LVARRAY_HOST_DEVICE bool	contains (INDEX_TYPE const i, COL_TYPE const &value) const
void	consistencyCheck () const
	Verify that the capacity of each set is greater than or equal to the size and that each set is sorted unique. More...
LVARRAY_HOST_DEVICE constexpr ArraySlice< COL_TYPE const, 1, 0, INDEX_TYPE_NC >	operator[] (INDEX_TYPE const i) const
LVARRAY_HOST_DEVICE constexpr COL_TYPE const &	operator() (INDEX_TYPE const i, INDEX_TYPE const j) const
LVARRAY_HOST_DEVICE bool	insertIntoSet (INDEX_TYPE const i, COL_TYPE const &value) const
	Insert a value into the given set. More...
LVARRAY_HOST_DEVICE INDEX_TYPE_NC	insertIntoSet (INDEX_TYPE const i, ITER const first, ITER const last) const
	Inserts multiple values into the given set. More...
LVARRAY_HOST_DEVICE bool	removeFromSet (INDEX_TYPE const i, COL_TYPE const &value) const
	Remove a value from the given set. More...
LVARRAY_HOST_DEVICE INDEX_TYPE_NC	removeFromSet (INDEX_TYPE const i, ITER const first, ITER const last) const
	Removes multiple values from the given set. More...
void	move (MemorySpace const space, bool const touch=true) const
	Move this ArrayOfSets to the given memory space. More...
Protected Member Functions inherited from LvArray::ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
	ArrayOfArraysView (bool)
	Protected constructor to be used by parent classes. More...
void	resize (INDEX_TYPE const newSize, INDEX_TYPE const defaultArrayCapacity=0)
	Set the number of arrays. More...
void	reserve (INDEX_TYPE const newCapacity)
	Reserve space for the given number of arrays. More...
void	reserveValues (INDEX_TYPE const newValueCapacity, BUFFERS &... buffers)
	Reserve space for the given number of values. More...
void	compress (BUFFERS &... buffers)
	Compress the arrays so that the values of each array are contiguous with no extra capacity in between. More...
void	resizeFromOffsets (INDEX_TYPE const numSubArrays, INDEX_TYPE const *const offsets, BUFFERS &... buffers)
	Clears the array and creates a new array with the given number of sub-arrays. More...
void	resizeFromCapacities (INDEX_TYPE const numSubArrays, INDEX_TYPE const *const capacities, BUFFERS &... buffers)
	Clears the array and creates a new array with the given number of sub-arrays. More...
void	assimilate (ArrayOfArraysView< COL_TYPE, INDEX_TYPE, CONST_SIZES, BUFFER_TYPE > &&src)
	Steal the resources of src, clearing it in the process. More...
void	resizeImpl (INDEX_TYPE const newSize, INDEX_TYPE const defaultArrayCapacity, BUFFERS &... buffers)
	Set the number of arrays. More...
void	free (BUFFERS &... buffers)
	Destroy all the objects held by this array and free all associated memory. More...
void	setEqualTo (INDEX_TYPE const srcNumArrays, INDEX_TYPE const srcMaxOffset, BUFFER_TYPE< INDEX_TYPE > const &srcOffsets, BUFFER_TYPE< INDEX_TYPE > const &srcSizes, BUFFER_TYPE< COL_TYPE > const &srcValues, PAIRS_OF_BUFFERS &&... pairs)
	Set this ArrayOfArraysView equal to the provided arrays. More...
void	setCapacityOfArray (INDEX_TYPE const i, INDEX_TYPE const newCapacity, BUFFERS &... buffers)
	Set the capacity of the given array. More...
void	setName (std::string const &name)
	Set the name to be displayed whenever the underlying Buffer's user call back is called. More...
	ArrayOfArraysView ()=default
	A constructor to create an uninitialized ArrayOfArraysView. More...
	ArrayOfArraysView (ArrayOfArraysView const &)=default
	Default copy constructor. More...
LVARRAY_HOST_DEVICE constexpr	ArrayOfArraysView (ArrayOfArraysView &&src)
	Default move constructor. More...
LVARRAY_HOST_DEVICE constexpr	ArrayOfArraysView (INDEX_TYPE const numArrays, BUFFER_TYPE< INDEX_TYPE > const &offsets, BUFFER_TYPE< SIZE_TYPE > const &sizes, BUFFER_TYPE< COL_TYPE > const &values)
	Construct a new ArrayOfArraysView from the given buffers. More...
ArrayOfArraysView &	operator= (ArrayOfArraysView const &)=default
	Default copy assignment operator. More...
LVARRAY_HOST_DEVICE ArrayOfArraysView &	operator= (ArrayOfArraysView &&src)
	Move assignment operator.. More...
LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE, INDEX_TYPE const, CONST_SIZES, BUFFER_TYPE >	toView () const
LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE, INDEX_TYPE const, true, BUFFER_TYPE >	toViewConstSizes () const
LVARRAY_HOST_DEVICE constexpr ArrayOfArraysView< COL_TYPE const, INDEX_TYPE const, true, BUFFER_TYPE >	toViewConst () const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	size () const
LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK INDEX_TYPE_NC	sizeOfArray (INDEX_TYPE const i) const
LVARRAY_HOST_DEVICE constexpr SIZE_TYPE const *	getSizes () const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE const *	getOffsets () const
LVARRAY_HOST_DEVICE constexpr COL_TYPE const *	getValues () const
LVARRAY_HOST_DEVICE CONSTEXPR_WITH_NDEBUG INDEX_TYPE_NC	capacity () const
LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK INDEX_TYPE_NC	capacityOfArray (INDEX_TYPE const i) const
LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC	valueCapacity () const
LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK ArraySlice< COL_TYPE, 1, 0, INDEX_TYPE_NC >	operator[] (INDEX_TYPE const i) const
LVARRAY_HOST_DEVICE CONSTEXPR_WITHOUT_BOUNDS_CHECK COL_TYPE &	operator() (INDEX_TYPE const i, INDEX_TYPE const j) const
LVARRAY_HOST_DEVICE void	emplaceBack (INDEX_TYPE const i, ARGS &&... args) const
	Append a value to an array. More...
LVARRAY_HOST_DEVICE void	emplaceBackAtomic (INDEX_TYPE const i, ARGS &&... args) const
	Append a value to an array in a thread safe manner. More...
LVARRAY_HOST_DEVICE void	appendToArray (INDEX_TYPE const i, ITER const first, ITER const last) const
	Append values to an array. More...
LVARRAY_HOST_DEVICE void	emplace (INDEX_TYPE const i, INDEX_TYPE const j, ARGS &&... args) const
	Insert a value into an array. More...
LVARRAY_HOST_DEVICE void	insertIntoArray (INDEX_TYPE const i, INDEX_TYPE const j, ITER const first, ITER const last) const
	Insert values into an array. More...
LVARRAY_HOST_DEVICE void	eraseFromArray (INDEX_TYPE const i, INDEX_TYPE const j, INDEX_TYPE const n=1) const
	Erase values from an array. More...
void	registerTouch (MemorySpace const space) const
	Touch the memory in space. More...
void	move (MemorySpace const space, bool touch=true) const
	Move this ArrayOfArrays to the given memory space. More...

Protected Attributes
COL_TYPE_NC	m_numCols
	The number of columns in the matrix.
Protected Attributes inherited from LvArray::ArrayOfArraysView< COL_TYPE, INDEX_TYPE, std::is_const< COL_TYPE >::value, BUFFER_TYPE >
INDEX_TYPE_NC	m_numArrays
	The number of arrays contained.
BUFFER_TYPE< INDEX_TYPE >	m_offsets
BUFFER_TYPE< SIZE_TYPE >	m_sizes
	Holds the size of each array.
BUFFER_TYPE< COL_TYPE >	m_values

Detailed Description

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>
class LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >

This class provides a view into a compressed row storage sparsity pattern.

Template Parameters

COL_TYPE	the integer used to enumerate the columns.
INDEX_TYPE	the integer to use for indexing.

When INDEX_TYPE is const m_offsets is not copied between memory spaces. INDEX_TYPE should always be const since SparsityPatternView is not allowed to modify the offsets.

When COL_TYPE is const and INDEX_TYPE is const you cannot insert or remove from the View and neither the offsets, sizes, or columns are copied between memory spaces.

Constructor & Destructor Documentation

SparsityPatternView() [1/5]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::SparsityPatternView ( )

default

A constructor to create an uninitialized SparsityPatternView.

Note

An uninitialized SparsityPatternView should not be used until it is assigned to.

SparsityPatternView() [2/5]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::SparsityPatternView ( SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > const &  )

inlinedefault

Default copy constructor.

Note

The copy constructor will trigger the copy constructor for

Template Parameters

BUFFER_TYPE

SparsityPatternView() [3/5]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::SparsityPatternView ( SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > &&  src )

inline

Move constructor.

Parameters

src	The SparsityPatternView to move from.

SparsityPatternView() [4/5]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::SparsityPatternView ( INDEX_TYPE const  nRows, COL_TYPE const  nCols, BUFFER_TYPE< INDEX_TYPE > const &  offsets, BUFFER_TYPE< SIZE_TYPE > const &  nnz, BUFFER_TYPE< COL_TYPE > const &  columns  )

inline

Construct a new CRSMatrixView from the given buffers.

Parameters

nRows	The number of rows.
nCols	The number of columns
offsets	The offsets buffer, of size nRows + 1.
nnz	The buffer containing the number of non zeros in each row, of size nRows.
columns	The columns buffer, of size offsets[ nRows ].

SparsityPatternView() [5/5]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::SparsityPatternView ( bool  )

inlineprotected

Protected constructor to be used by parent classes.

Note

The unused boolean parameter is to distinguish this from the default constructor.

Member Function Documentation

assimilate()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

void LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::assimilate ( SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > &&  src )

inlineprotected

Steal the resources of src, clearing it in the process.

Parameters

src	The SparsityPatternView to steal from.

empty() [1/3]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE bool LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::empty ( ) const

inline

Returns

Return true iff the matrix is all zeros.

empty() [2/3]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr bool LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::empty ( INDEX_TYPE const  row ) const

inline

Returns

Return true iff the given row is all zeros.

Parameters

row	the row to query.

empty() [3/3]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE bool LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::empty ( INDEX_TYPE const  row, COL_TYPE const  col  ) const

inline

Returns

Return true iff the given entry is in the matrix.

Parameters

row	the row to query.
col	the col to query.

getColumns() [1/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr ArraySlice< COL_TYPE const, 1, 0, INDEX_TYPE_NC > LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::getColumns ( INDEX_TYPE const  row ) const

inline

Returns

Return an ArraySlice1d to the columns of the given row.

Parameters

row	the row to access.

getColumns() [2/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr COL_TYPE const* LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::getColumns ( ) const

inline

Returns

Return a pointer to the array of values, this array has length numRows().

getOffsets()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE const* LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::getOffsets ( ) const

inline

Returns

Return a pointer to the array of offsets, this array has length numRows() + 1.

insertNonZero()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE bool LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::insertNonZero ( INDEX_TYPE const  row, COL_TYPE const  col  ) const

inline

Insert a non-zero entry at the given position.

Parameters

row	the row to insert in.
col	the column to insert.

Returns

True iff the column was inserted (the entry was zero before).

Precondition

Since the SparsityPatternView can't do reallocation or shift the offsets it is up to the user to ensure that the given row has enough space for the new entries.

insertNonZeros()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

template<typename ITER >

LVARRAY_HOST_DEVICE INDEX_TYPE_NC LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::insertNonZeros ( INDEX_TYPE const  row, ITER const  first, ITER const  last  ) const

inline

Inserts multiple non-zero entries into the given row.

Template Parameters

ITER	An iterator type.

Parameters

row	The row to insert into.
first	An iterator to the first column to insert.
last	An iterator to the end of the columns to insert.

Returns

The number of columns inserted.

Precondition

The columns to insert [ first, last ) must be sorted and contain no duplicates.

Since the SparsityPatternview can't do reallocation or shift the offsets it is up to the user to ensure that the given row has enough space for the new entries.

move()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

void LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::move ( MemorySpace const  space, bool const  touch = true  ) const

inline

Move this ArrayOfSets to the given memory space.

Parameters

space	The memory space to move to.
touch	If true touch the values, sizes and offsets in the new space.

Note

When moving to the GPU since the offsets can't be modified on device they are not touched.

This is just a wrapper around the ArrayOfArraysView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.

This is just a wrapper around the ArrayOfSetsView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.

This is just a wrapper around the ArrayOfSetsView method. The reason it isn't pulled in with a using statement is that it is detected using IS_VALID_EXPRESSION and this fails with NVCC.

nonZeroCapacity() [1/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::nonZeroCapacity ( ) const

inline

Returns

Return the total number of non zero entries able to be stored without a reallocation.

nonZeroCapacity() [2/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::nonZeroCapacity ( INDEX_TYPE const  row ) const

inline

Returns

Return the total number of non zero entries able to be stored in a given row without increasing its capacity.

Parameters

row	the row to query.

numColumns()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr COL_TYPE const LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::numColumns ( ) const

inline

Returns

Return the number of columns in the matrix.

numNonZeros() [1/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE INDEX_TYPE_NC LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::numNonZeros ( ) const

inline

Returns

Return the total number of non zero entries in the matrix.

numNonZeros() [2/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::numNonZeros ( INDEX_TYPE const  row ) const

inline

Returns

Return the total number of non zero entries in the given row.

Parameters

row	the row to query.

numRows()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr INDEX_TYPE_NC const LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::numRows ( ) const

inline

Returns

Return the number of rows in the matrix.

operator=() [1/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

SparsityPatternView& LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::operator= ( SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > const &  )

inlinedefault

Default copy assignment operator, this does a shallow copy.

Returns

*this.

operator=() [2/2]

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

SparsityPatternView& LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::operator= ( SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE > &&  src )

inline

Move assignment operator, this does a shallow copy.

Parameters

src	The SparsityPatternView to move from.

Returns

*this.

removeNonZero()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE bool LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::removeNonZero ( INDEX_TYPE const  row, COL_TYPE const  col  ) const

inline

Remove a non-zero entry at the given position.

Parameters

row	the row to remove from.
col	the column to remove.

Returns

True iff the column was removed (the entry was non zero before).

removeNonZeros()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

template<typename ITER >

DISABLE_HD_WARNING LVARRAY_HOST_DEVICE INDEX_TYPE_NC LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::removeNonZeros ( INDEX_TYPE const  row, ITER const  first, ITER const  last  ) const

inline

Remove multiple non-zero entries from the given row.

Template Parameters

ITER	An iterator type.

Parameters

row	The row to remove from.
first	An iterator to the first column to remove.
last	An iterator to the end of the columns to remove.

Returns

The number of columns removed.

Precondition

The columns to remove [ first, last ) must be sorted and contain no duplicates.

resize()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

template<class ... BUFFERS>

void LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::resize ( INDEX_TYPE const  nrows, COL_TYPE const  ncols, INDEX_TYPE_NC  initialRowCapacity, BUFFERS &...  buffers  )

inlineprotected

Resize the SparsityPattern to the given size.

Template Parameters

BUFFERS

A variadic pack of buffer types.

Parameters

nrows	The number of rows in the matrix.
ncols	The number of columns in the matrix.
initialRowCapacity	The initial capacity of any newly created rows.
buffers	A variadic pack of buffers to resize along with the columns.

toView()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE, INDEX_TYPE const, BUFFER_TYPE > LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::toView ( ) const

inline

Returns

A new SparsityPatternView< COL_TYPE, INDEX_TYPE const >.

toViewConst()

template<typename COL_TYPE, typename INDEX_TYPE, template< typename > class BUFFER_TYPE>

LVARRAY_HOST_DEVICE constexpr SparsityPatternView< COL_TYPE const, INDEX_TYPE const, BUFFER_TYPE > LvArray::SparsityPatternView< COL_TYPE, INDEX_TYPE, BUFFER_TYPE >::toViewConst ( ) const

inline

Returns

A new SparsityPatternView< COL_TYPE const, INDEX_TYPE const >.

---

The documentation for this class was generated from the following file:

• /home/docs/checkouts/readthedocs.org/user_builds/lvarray/checkouts/latest/src/SparsityPatternView.hpp
